Three sensors in one, you can automate your network the way you want.

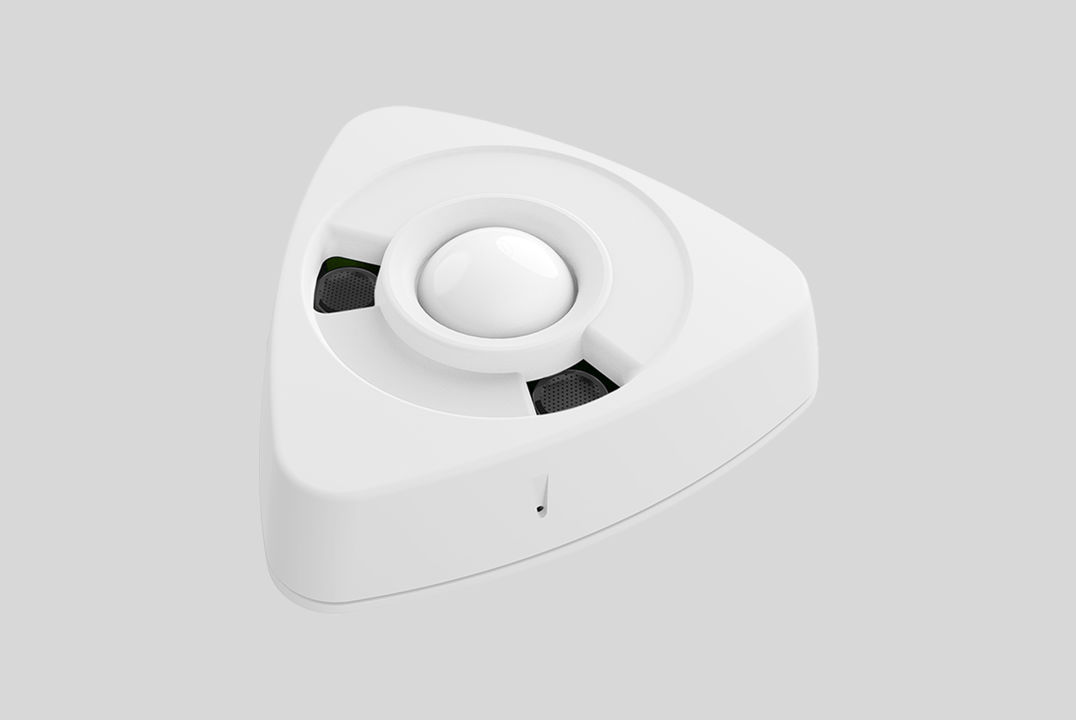

Presenting Amptek Tech's newest IoT innovation that will expand the innovative capability of your iCon network. The iCon Sensor is embedded with three different sensors to expand its potential applications: Infrared (PIR) and Ultrasonic Sensors detect motion, while the Photocell Sensor detects various levels of ambient light.
The iCon Sensor allows you to completely automate your IoT system by detecting motion and levels of ambient light in your space.
An Infrared (PIR) and Ultrasonic sensor is embedded into our iCon Sensor to detect motion in your building. The Infrared motion sensor has a full 360 degree range with a radius of over 5 metres. The Ultrasonic motion sensor can also reach up to 4 metres.
Our iCon Sensor is also embedded with a Photocell Sensor to detect various levels of light in your building. This allows your IoT lighting system to automatically adjust the intensity of your LED luminaires based on the amount of natural light entering the building. Luminaires will decrease their output during brighter days, consuming less energy and therefore save you more money.

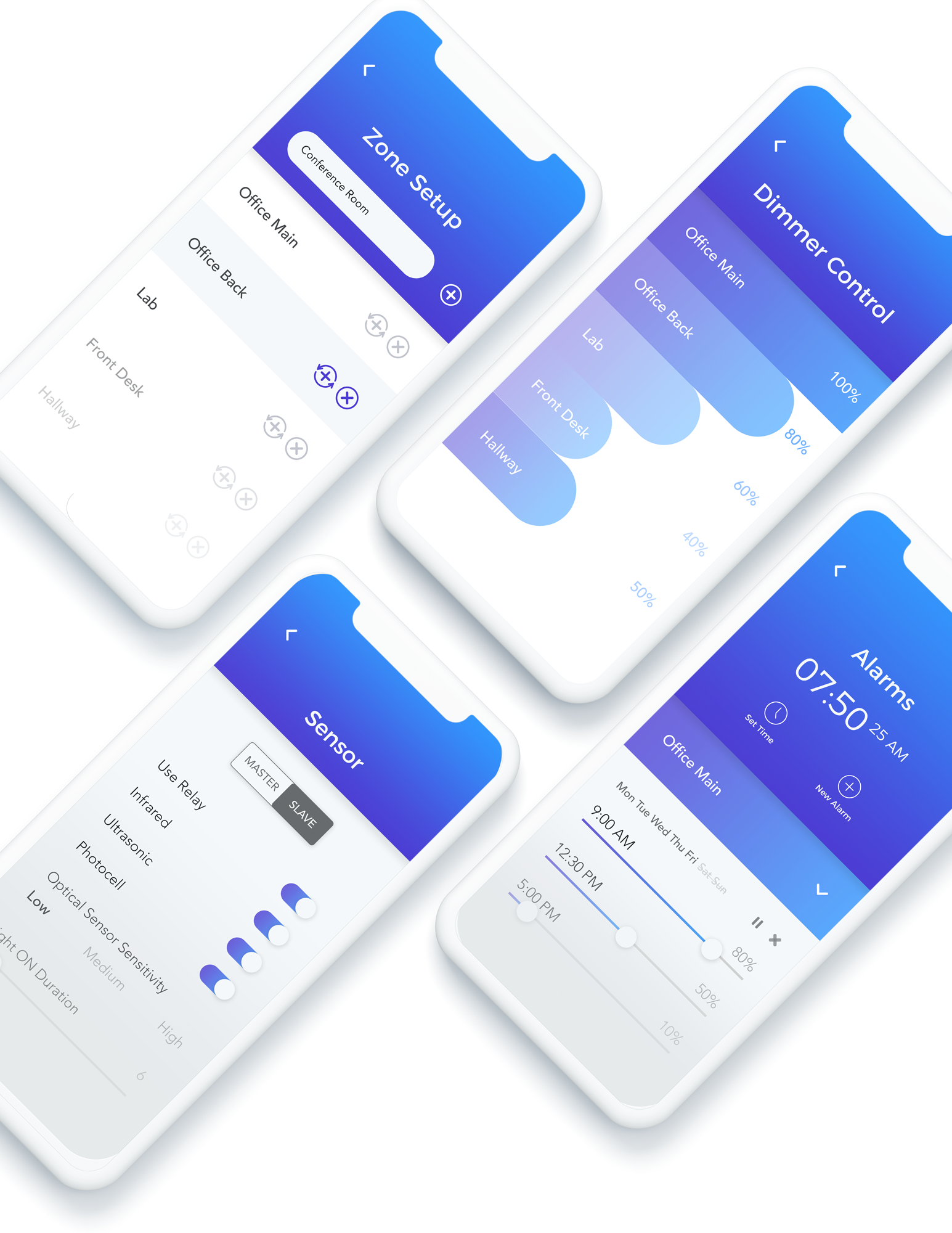

Our iConDimmer mobile app enables you to setup your unique system of iCon Sensors. Individual sensors can be customized by choosing which type of sensor is activated, sensor sensitivity, and more.
Hardware and firmware details on the iCon Sensor.
Input: 100-375VAC, 50/60Hz, 13A
Output: 100-375VAC, 13A Max, 4000VA Max
Infrared motion sensor range: 360 degrees, 5.5 meter radius
Ultrasonic motion sensor range: 4 meters
Bluetooth: Bluetooth Low Energy V4.2
Dimensions (Length x Width x Height): 122mm x 128mm x 36mm
FCC ID: QOQBGM113
IC: 5123A-BGM113
ETL: Certified to CSA C22.2 No 60950-1, Conforms to UL Std. 60950-1.
With our expertise and experience, we are eager to be part of your next project! Contact us today to get started.
Research.
Development.
Innovation.
The iConDimmer lighting solution app is now available for your smartphone.
