No matter how large the network, a single iCon can communicate with your entire configuration for a more efficient control system.

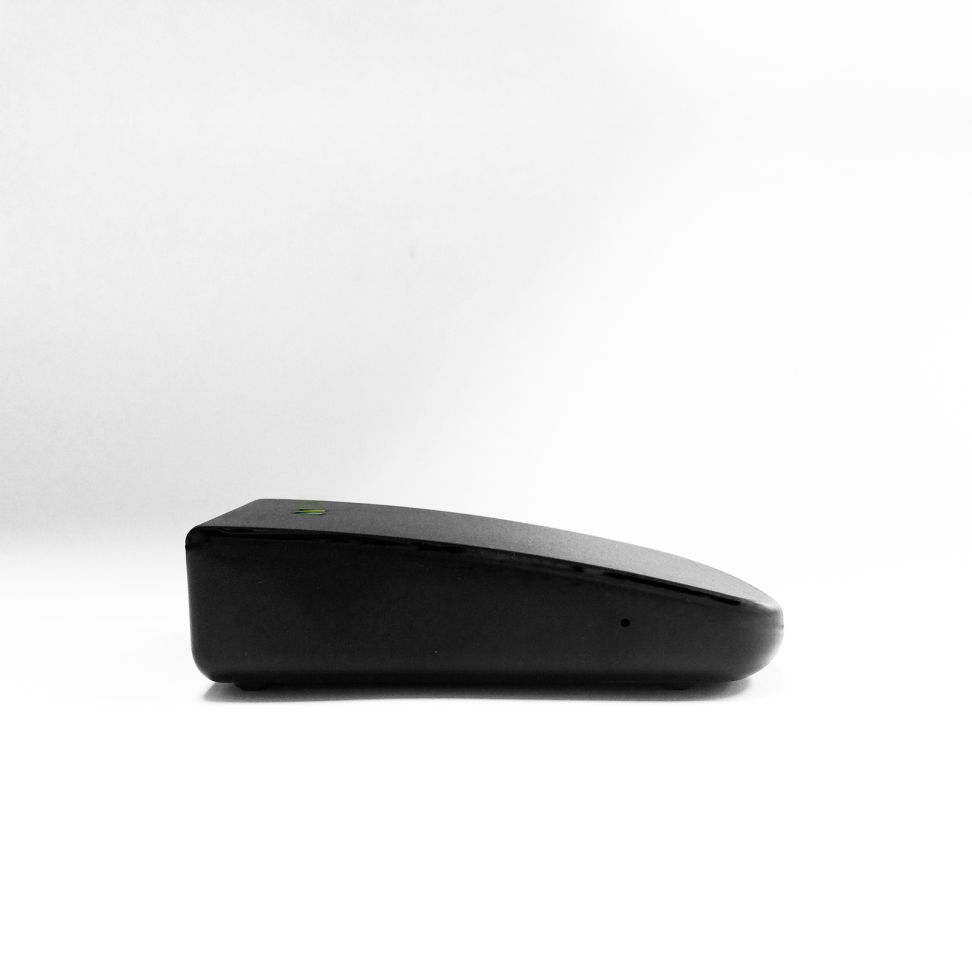

The iCon is Amptek's latest innovation that uses recent IoT development and research. Our current innovation in lighting technology enables you to customize your own LED lighting network by creating a unique iCon-Dimmer configuration to fit your needs.

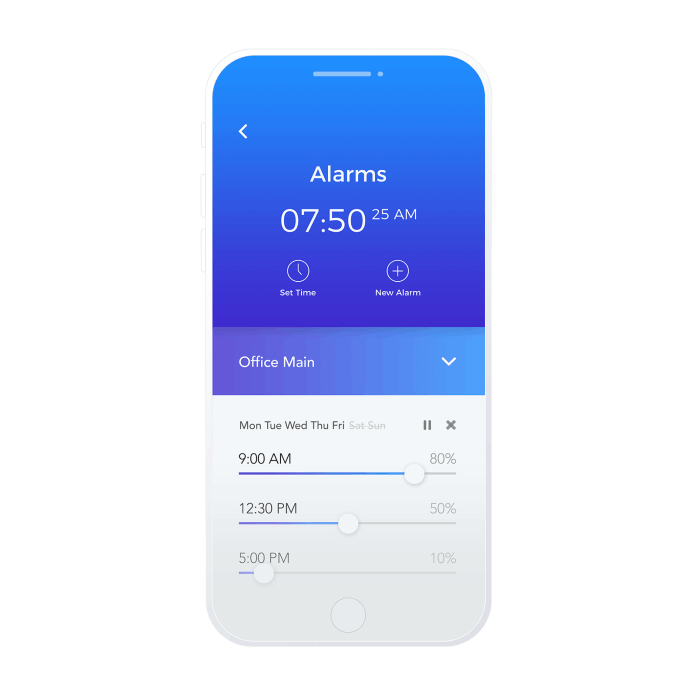

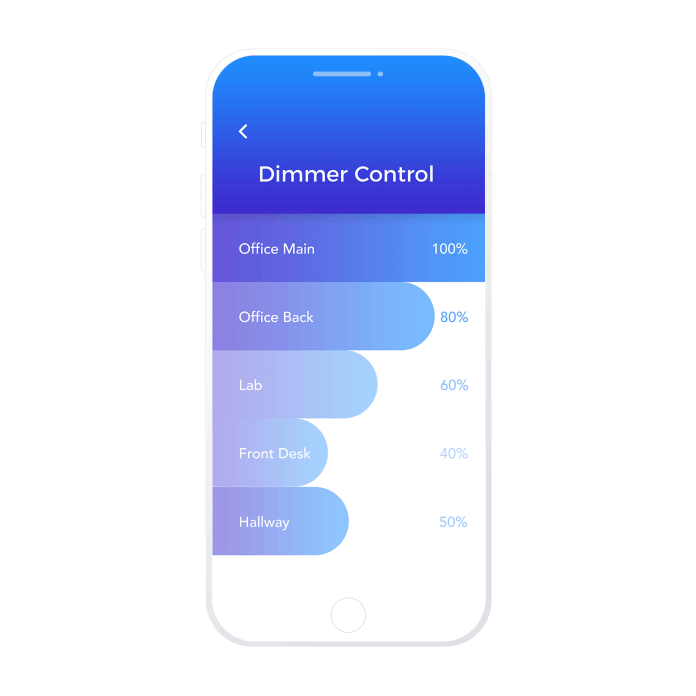

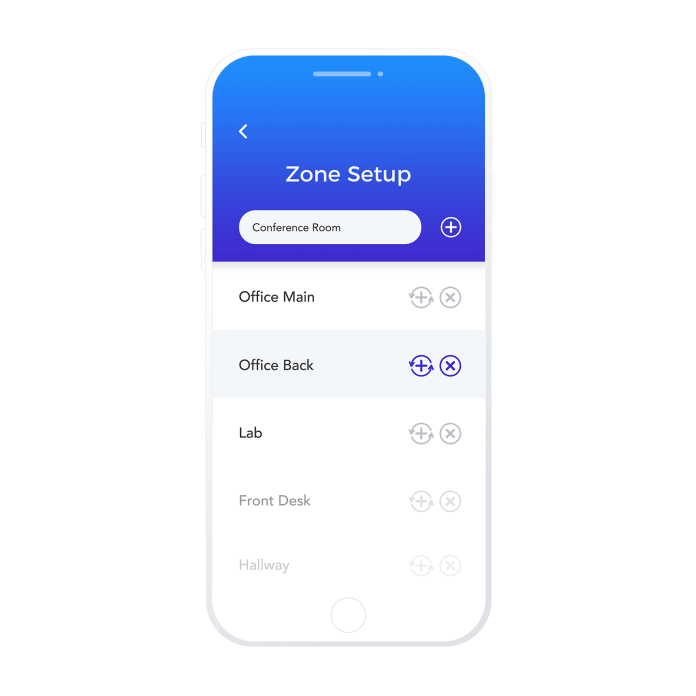

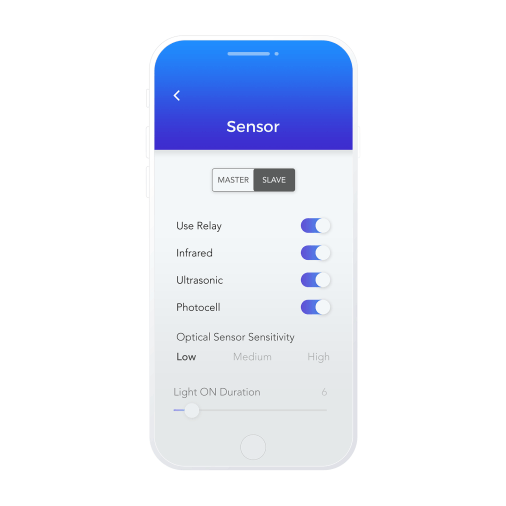

Our current innovation in IoT lighting has resulted in our release of the iConDimmer mobile app, now available on the Apple Store and Google Play Store. The app is used to take full control over your IoT lighting network.

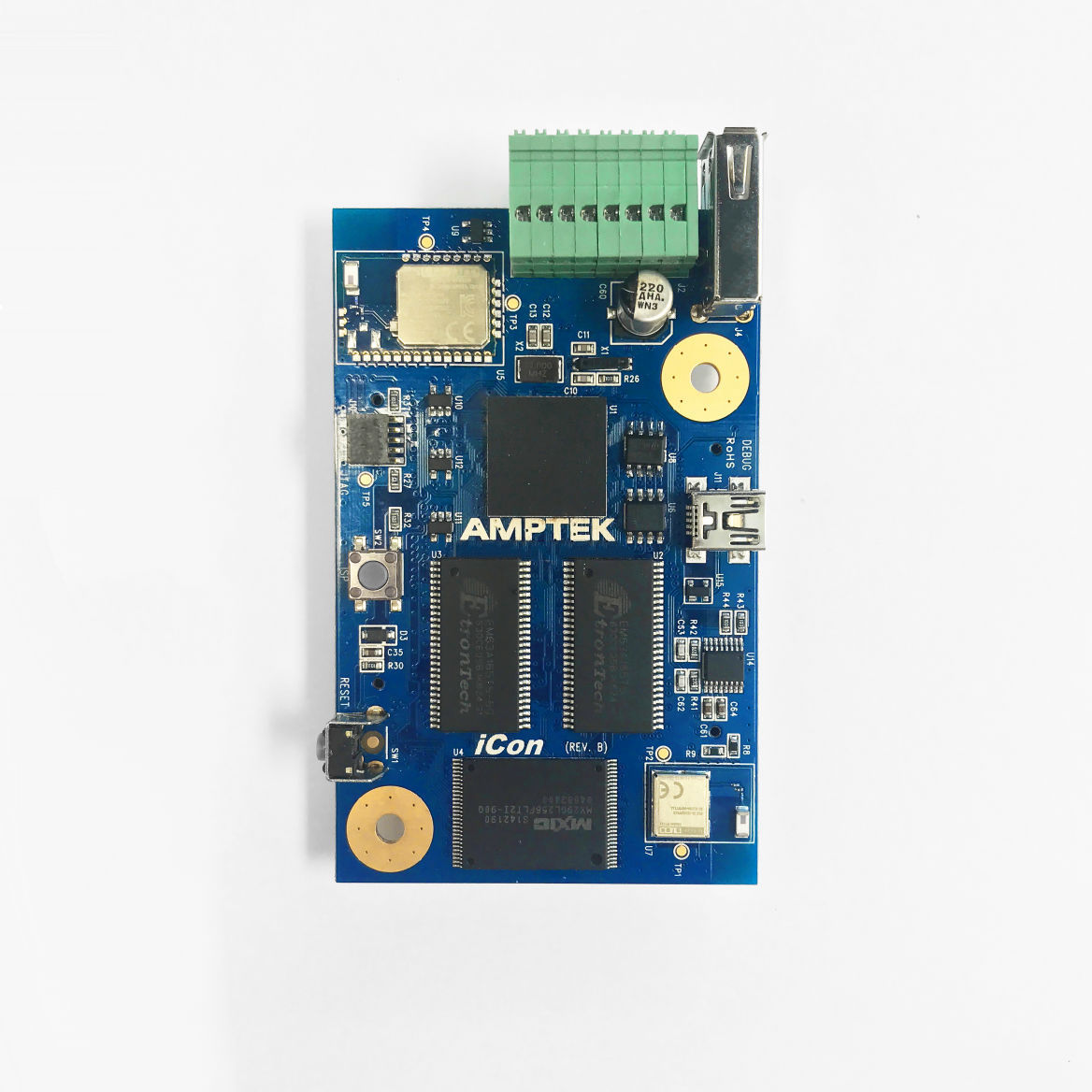

This credit-card-sized low power embedded system is specifically designed for M2M and IoT applications. It brings the two most common and cost-effective wireless technologies onto one single board design. Running on the open-source uClinux operating system, and with various expansion boards available, the iCon platform can easily be transformed into a full-scaled embedded system.
Hardware, firmware, certification, and expansion details on the iCon and iCon Embedded Platform.
ARM Cortex-M4 Processor
802.11b/g/n
Bluetooth V4.2
USB 2.0
5VDC, 1.5AC/DC
Dimensions (Length x Width x Height): 109mm x 60.9mm x 28.5mm
Linux 4.4
BlueZ Protocol Stack
ETL
CE
FCC
ARM Cortex-M4 Processor
802.11b/g/n
Bluetooth V4.2
USB 2.0
uClinux – Linux kernel 2.6.33–ARM1
BlueZ Bluetooth protocol stack
TCP/IP protocol stack
WPA supplicant
Boa web server
Inadyn DDNS client
I2C
SPI
UART
RMII
PWM
GPIO
10-bit DAC
12-bit ADC
16-bit RGB LCD
With our expertise and experience, we are eager to be part of your next project! Contact us today to get started.
Research.
Development.
Innovation.
The iConDimmer lighting solution app is now available for your smartphone.
