Last revised July 17th 2017.
The dimmer can only operate with 0-10V dimmable LED drivers. PWM dimming is not supported.
Bluetooth v4.2
Input Voltage 100-375VAC, 50-60Hz
Output Voltage 0-10VDC
Operating Temperature -30C to +70C
18 AWG wires (Line, Neutral, DIM+, DIM-)
Wire UL1015 18AWG, stranded
Dimensions β 100mm x 50mm x 25.5mm
Built-in BLE stack
R&TTE:
Safety EN 60950-1: 2006+A11:2009+A1:2010+A12:2011 EMC (Art. 3(1)(a)): EN 301 489-1 V1.9.2, EN 301-489-17 V2.2.1, EN 61000-4-3:2006 Spectrum (Art. 3(2)): EN 300 328 V1.9.1
FCC:
15.247:2012 IC: RSS-210, Issue 8, 2010. RSS-GEN, Issue 3, 2010 ETL: Conforms to UL std. 60950-1. Certified to CSA C22.2 No, 60950-1
The following is the installation process of connecting the BLE Dimmer to its corresponding lighting fixture.
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT ALL SOURCES OF SUPPLY BEFORE SERVICING.
1. Connect BLACK wire to the LINE input of the LED driver. LINE is also the line of the main AC power.
2. Connect WHITE wire to the NEUTRAL input of the LED driver.
3. Connect the green DIM+ wire to the DIM+ input of the LED driver.
4. Connect the grey DIM- wire to the DIM- input of the LED driver.
5. Position and secure BLE Dimmer near lighting fixture.

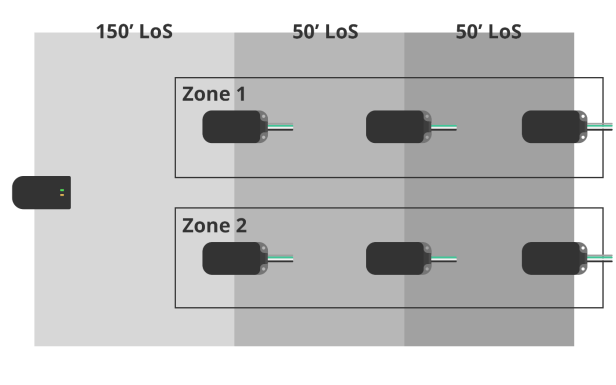

Network range can be greatly affected by a number of factors, such as physical obstacles, radio interference and even elevation above ground. In order to achieve the optimal radio coverage, at least one dimmer in a zone has to be within 150 feet within the light of sight from the iCon. Furthermore, the antenna inside the dimmer has less attenuation if a dimmer is at least 5 feet above the ground. In addition, in a multiple dimmer system, the distance between each dimmer within a zone must be within 50 feet line of sight.

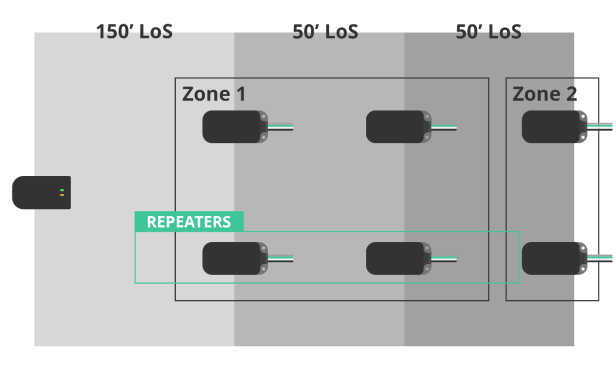

In situations in which a zone is out-of-range of the iCon and is also located behind another zone, multiple "dummy" dimmers can be used as "repeaters" to bridge the signal over from the iCon to the out-of-range zone. Connect only AC power to each dimmer and place them approximately 50 feet apart from each other until reaching the desired zone location.
Notice: The unused DIM+ and DIM- wire must be capper properly to avoid short circuiting.
Note: All devices must be at least 5' above the ground. LoS meaning Light of Sight.
Should a product fail to perform as described within the warranted period, it will be repaired or replaced with the same or functonally equivalent product by Amptek, at its discretion, free of charge provided you: (1) return the failed product to Amptek with shipping charge prepaid, and (2) provide Amptek with proof of the original date of purchase. Repaired or replacement products will be returned to you with shipping charges prepaid.
Replacement products may be refurbished or contain refurbished materials. If Amptek, by its sole determination, is unable to repair or replace the defective product, it will refund the depreciated purchase price of the product.
This warranty does not apply if, in the judgment of Amptek, the product fails due to (1) damage from shipment, handling, or storage, (2) neglect, fire, water, lightning, or other acts of nature, (3) accident, abuse, or misuse, (4) if it has been used ot maintained in a manner not conforming to product manual instructions, (5) has been modified in any way, or (6) normal wear and tear. Repair or attempted repair by anyone other than Amptek or an authorized agent will void this warranty. The maximum liability of Amptek under this warranty is limited to the purchase price of the product covered by the warranty.
Prior to returning any defective product, the end customer or the reseller from whom the end customer originally purchased the product must obtain a Return Material Authorization (RMA) number from Amptek. All defective products should be returned to Amptek with shipping charges prepaid. Amptek will not accept collect shipments.
Except as specifically provided in this agreement or as required by law, the warranties and remedies stated above are exclusive and in lieu of all thers, oral or written, express or implied. Any and all ther warranties, including implied warranties or merchantability, fitness for a particular purpose and non-infringement of third part rights are expressly excluded. Amptek shall not under any circumstances be liable to any person for any special, incidental, indirect, or consequential damages, including without limitation, damages resulting from use of malfunction of the products, loss of profits or revenues or costs of replacement goods, even if Amptek is informed in advance of the possibility of such damages.
DISCLAIMER
Amptek reserves the right to make changes to its products and to discontinue products without notice. All information and other reference information included herein is provided as-is. Amptek makes no warranties with respect to this information and disclaims any implied warranted of merchantability of non-infringement of third-party intellectual property rights.
Amptek cannot assume responsibility for use of any circuitry other than circuitry entirely emboided in an Amptek product.
Amptek products are typically use in places where high voltages are present during operation. High-voltage safety precautions should be observed in design and operation to minimize the change of injury. Certain applications may involve potential risks of death, personal injury, or severe property or environmental damage. Inclusion of Amptek products in such applications is understood to be fully at the risk of the customers.
